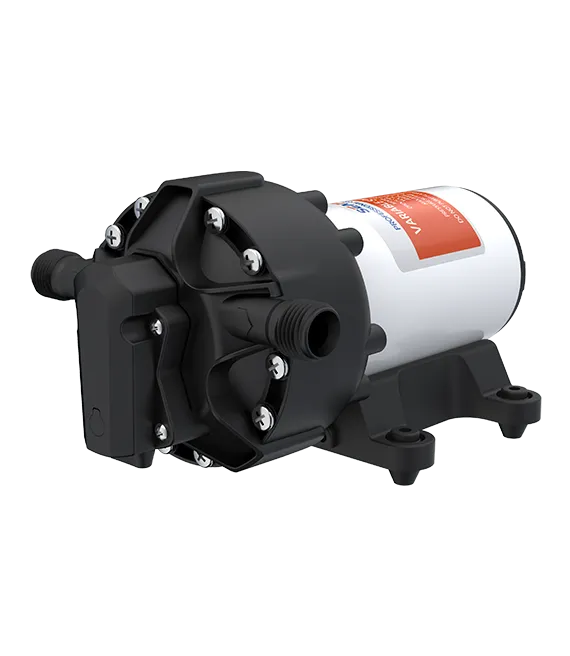

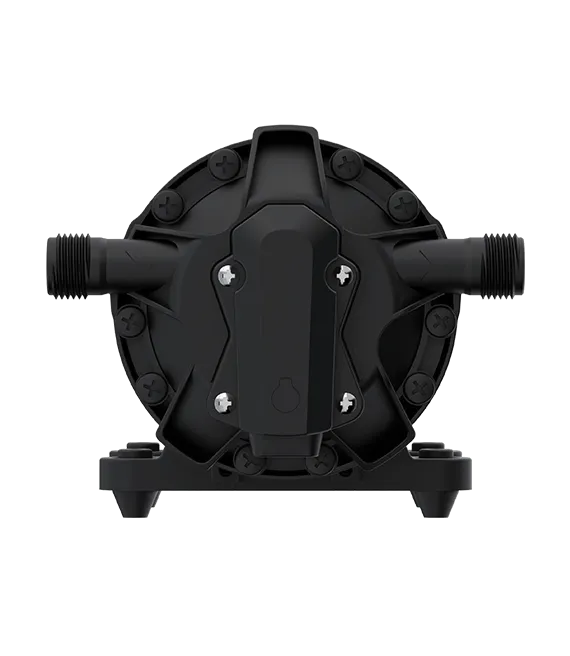

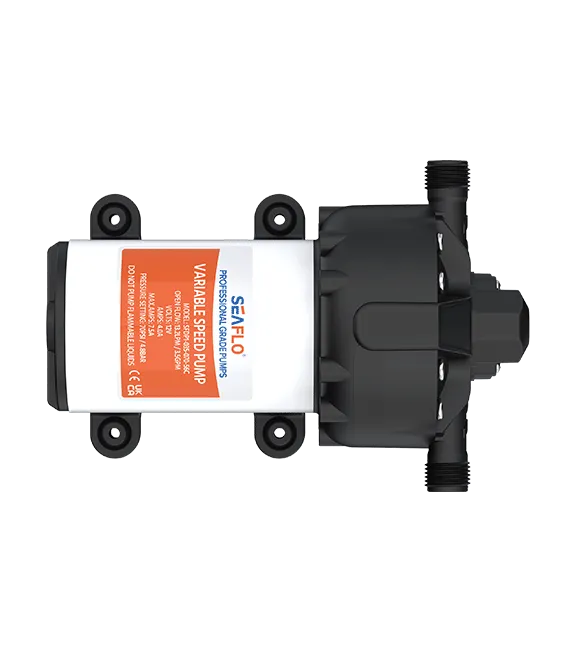

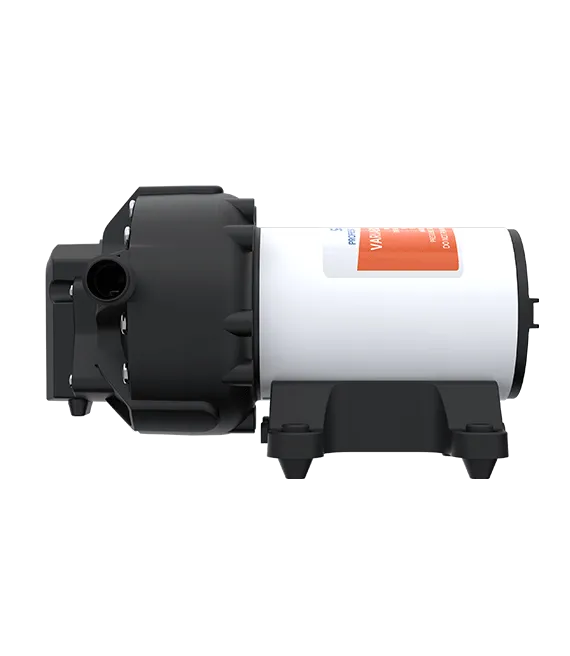

The SEAFLO 56 Series variable speed pumps are the newest in diaphragm pump technology that allows users to adjust the pump speed to match the water demand. Combined with our 5-chamber diaphragm and bypass technology, it reduces cycling and noise resulting in less wear & tear on the built-in pressure switch, while providing constant pressure across multiple outlets without the need for separate pressure tanks or switches.
Voltage：24 VDC (Max draw 4.0A)
Open Flow：3.5 GPM
Shut-off Pressure：70 PSI / 4.8 BAR
Priming Capabilities：6 feet (1.8 m) suction lift
Max Recommended Temperature：140° F (60° C）Max.
Material：EPDM(Valves) / Santoprene(Diaphragm)
Ports：1/2" MNPT
Control Type：Variable Speed Technology
MORE FEATURES & BENEFITS
• Variable speed technology.
• Motor speed adjusts to water needs.
• Capable of sustained low voltage operation
• Run dry safe, long service life
• Strong suction, self-priming up to 6FT (1.8M)
• Quiet operation,bypass technology reduces cycling
• 5-chamber diaphragm pump operates more stably and smoothly
